Rhino 8.30.26103.11002 — Mac version

Rhino is a freeform 3D modeller that focuses on precision surfacing and handling geometry of wildly different scales.

Complex blends, push-pull solids, and ShrinkWrap work

• Complex surface blends and Class‑A surfacing work.
• Pushing and pulling solid faces without rebuilding geometry.
• Wrapping messy meshes into a single closed solid with ShrinkWrap.
• Large team projects where a custom interface reduces repetitive clicks.

Apple Silicon loves RAM and a real mouse

• Native Apple Silicon support is here, but heavy models still want plenty of RAM.
• A multi‑button mouse with a scroll wheel stops you fighting the viewport.
• Metal‑based graphics speed up the display, yet actual number‑crunching still leans on the CPU.

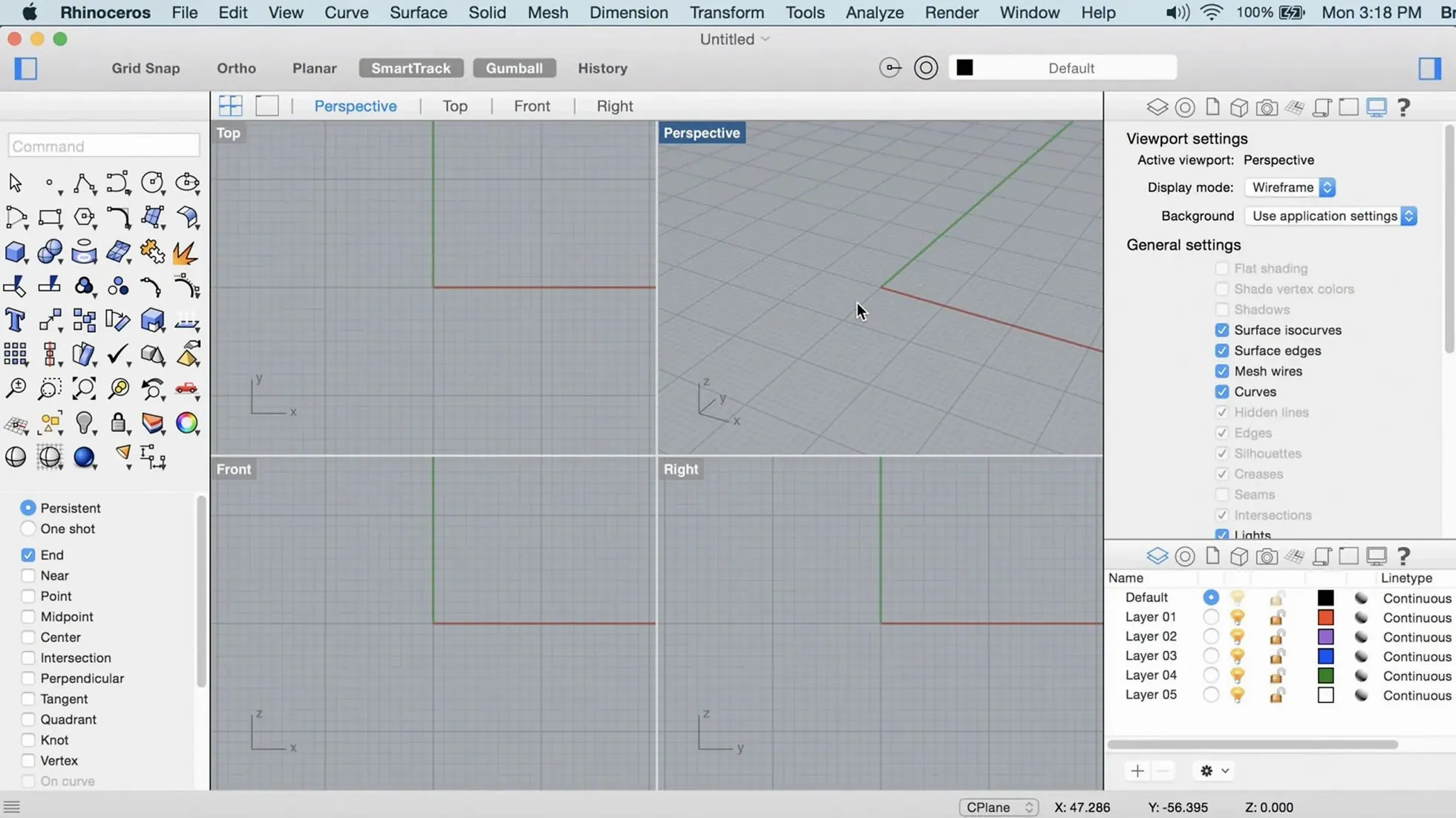

Opening a STEP file with Metal-accelerated orbiting

You open a model from a furniture designer who has sent over a STEP file of a chair frame. The viewport lights up on your MacBook, Metal kicking in so orbiting feels smooth even with all the curves visible. First thing you do is group the loose parts — seat shell, legs, fixings — into layers named something you will recognise next week. Hit F3 to drop a properties panel open; you check that units are in millimetres and tolerance is tight enough for the CNC shop you will send to later.

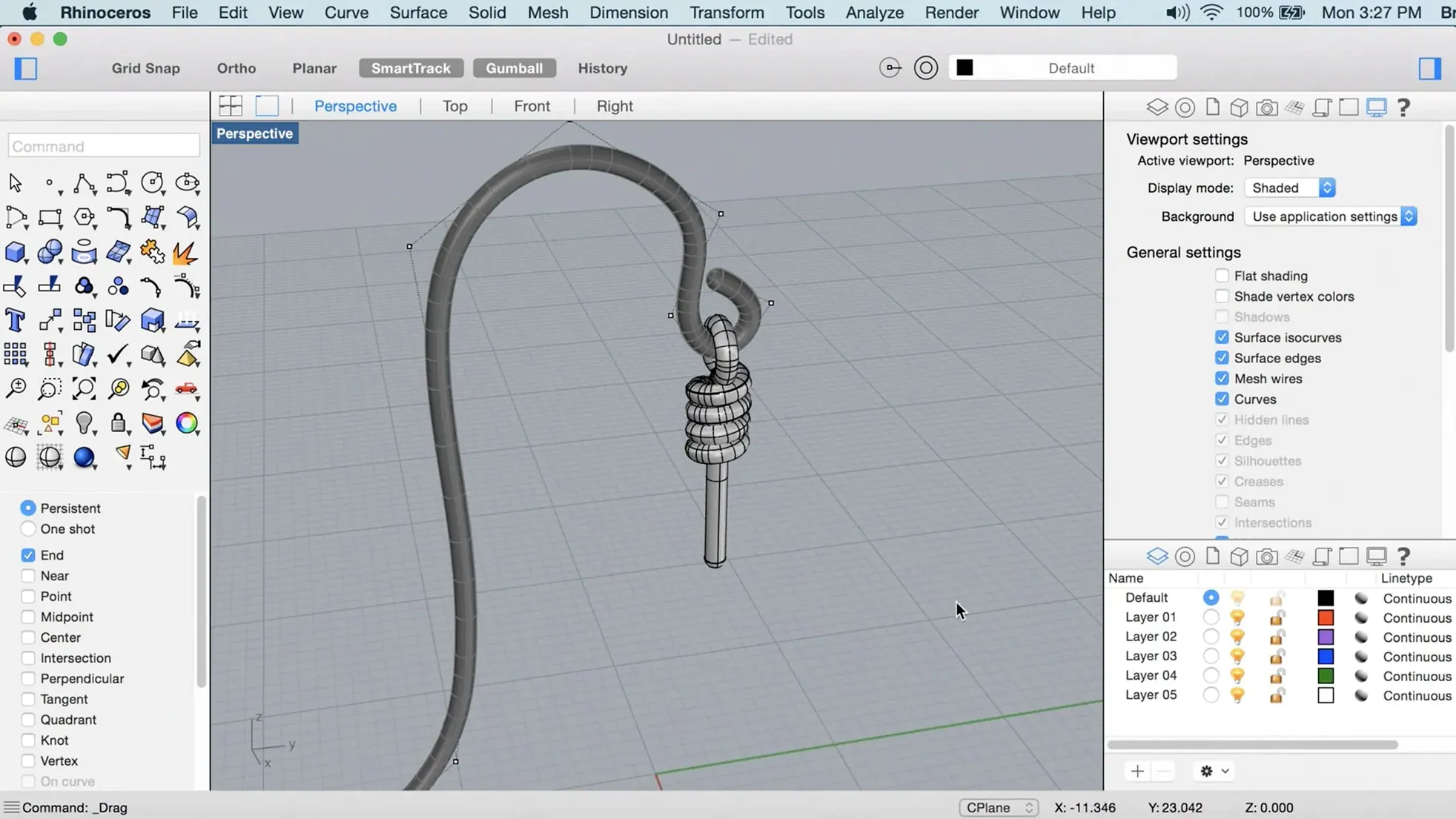

Then the real work starts. The seat edge is too sharp, so you pick the top surface, run FilletEdge, and watch the preview stripe update as you drag the radius. A chain of edges lights up automatically. You type 2.5 and press Enter. Rhino chews for a second and spits out a clean, tangent blend. You spin the view with the mouse wheel, catch a slight wobble in the reflection, undo, and run it again at 3 mm. Better.

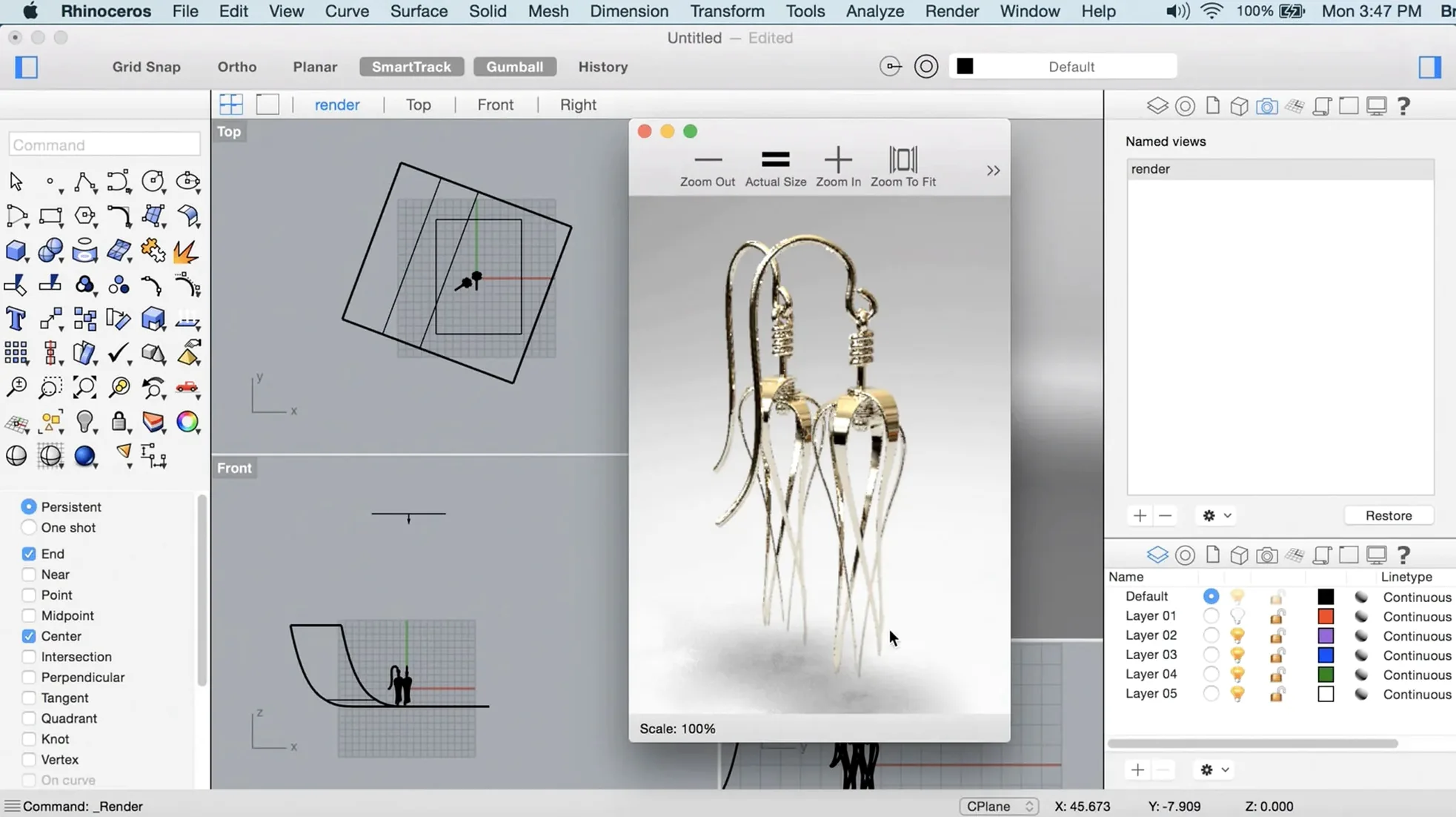

After half an hour of trimming, extending, and matching surface edges, the chair looks right. You drop a couple of clipping planes to check internal clearance around the leg-to-seat junction, then export a 3D PDF for the client to spin around on their phone. Session ends with the file saved and a copy dumped onto the server for the team in London.

Cavity block from an asymmetric bottle with a thread neck

Say you need a cavity block for a blow-moulded bottle. Not a beginner shape — the bottle has an asymmetric waist and a thread neck. Here is a workflow that gets it done without leaving Rhino.

1. Import reference. Bring in a hand sketch as a background bitmap on the front viewport. Scale it so 100 mm in the real world matches 100 units in the model.

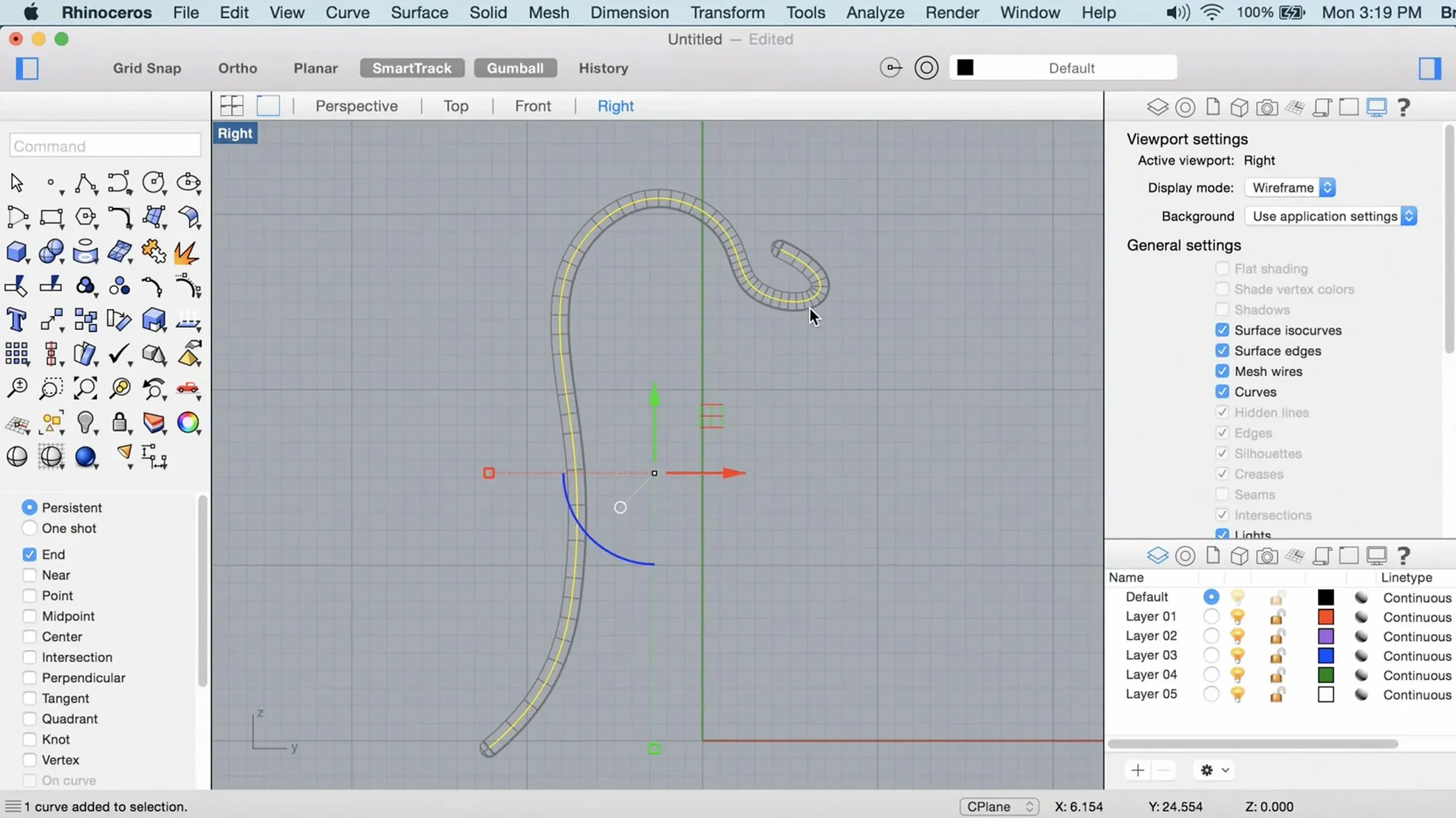

2. Lay down curves. With InterpCrv and Arc you trace the bottle profile on the Front plane. A centre line sits at x=0. You use the PointsOn command to tug control points until the waist curve feels right against the sketch.
3. Revolve the body. The main body is a simple Revolve — 360 degrees around the centre line. That gives you a closed solid.
4. Handle the asymmetry. The waist has an indent on one side. You draw a closed curve on the surface, split it with SplitFace, then use PushPull to sink that face 4 mm inward. The surrounding surfaces stretch and stay connected. No rebuilding.
5. Add the thread neck. A helix with the right pitch, a small triangular profile swept along it, then a Boolean union with the body. Check the transition with a zebra-stripe analysis; you tweak the sweep seam so it vanishes under a slight fillet.
6. Shell it. Shell command, pick the top opening face, set wall thickness to 1.2 mm. Now you have a hollow bottle.
7. Create the cavity block. Draw a large box around the bottle, Boolean difference. The bottle shape gets cut out. Split the block along the parting line plane, and you have two cavity halves ready for the toolmaker.
8. ShrinkWrap the final check. Before calling it done, run ShrinkWrap on a copy of the cavity. It wraps every nook into a single closed mesh, which you give to the FEA person for mould-flow simulation. No gap-hunting required.

Default tolerance bites when your units are metres

One of the biggest is trusting the default tolerance and unit settings. A fresh Rhino session defaults to millimetres and a tolerance of 0.001 units. If your project is in metres, that tolerance is suddenly a thousand times tighter than reasonable, and every intersect or trim operation slows to a crawl. Set units and tolerance deliberately before you draw a single line.

Another common stumble is ignoring construction history. A beginner will loft a surface, then manually tweak a profile curve and wonder why the surface did not update. Turn on history recording before you build, and changing a parent curve rebuilds the child surface automatically. Saves hours on iterative form-finding.

Many newcomers also treat NURBS surfaces like polygon meshes. They try to join two surfaces that have mismatched edge counts, get a warning, and force a join anyway. The result is a polysurface with naked edges that will fail later at Boolean or export time. Check edges with ShowEdges before you commit.

Finally, people work too long in wireframe mode. Shaded view with an environment map set to something slightly glossy reveals surface discontinuities that are invisible on a wireframe. Switch early, switch often.

Direct surfaces vs. Fusion's enforced history tree

Rhino vs. Fusion 360. Fusion is a parametric, timeline-based modeller tied to an Autodesk account. Rhino is direct-surface modelling with no enforced history tree. For an industrial designer iterating a complex organic form — a trainer sole, a hand tool grip — Rhino offers more fluid curve and surface editing. Fusion wins when you must dimensionally link dozens of parts in an assembly and want parametrics by default. Rhino’s Grasshopper gives you node-based parametrics, but it is a separate environment, not baked into every sketch.

Rhino vs. Blender. Blender is a polygon modeller at heart, with sculpting, animation, and a real-time renderer built in. Rhino is a NURBS modeller with precision surfacing and measurement tools that feel at home in a machine shop. If you are designing a character, Blender is the obvious pick. If you are designing a headlamp housing that must hold a 0.3 mm gap to the body panel, Rhino gives you the tolerance control and analysable surface continuity that Blender’s mesh tools do not aim for.

Rhino vs. SolidWorks. SolidWorks is parametric history-based CAD for mechanical assemblies. Rhino lacks the assembly-mate and drawing-sheet horsepower of SolidWorks, but it handles freeform surfaces and complex blending with far less setup. A lot of workshops do the heavy surfacing in Rhino, then import the result into SolidWorks to wrap it with ribs, bosses, and a bill of materials. They complement more than they compete.

• ShrinkWrap wraps open meshes into watertight solids.
• Metal‑based graphics replace the old OpenGL viewport for snappier display.
• The user interface is now much more customisable, so you can strip back toolbars to what you actually use.

• macOS 12.4 Monterey or newer
• Apple Silicon or Intel 64‑bit Mac
• At least 8 GB RAM (more for large assemblies)
• 10 GB free disk space
• A multi‑button mouse with a scroll wheel is strongly recommended
