Super Vectorizer Pro 2.3.3 — Mac version

If you already use Illustrator, CorelDRAW or another vector editor, think of Super Vectorizer Pro as the tracing tool that hands you clean paths to refine in your main app.

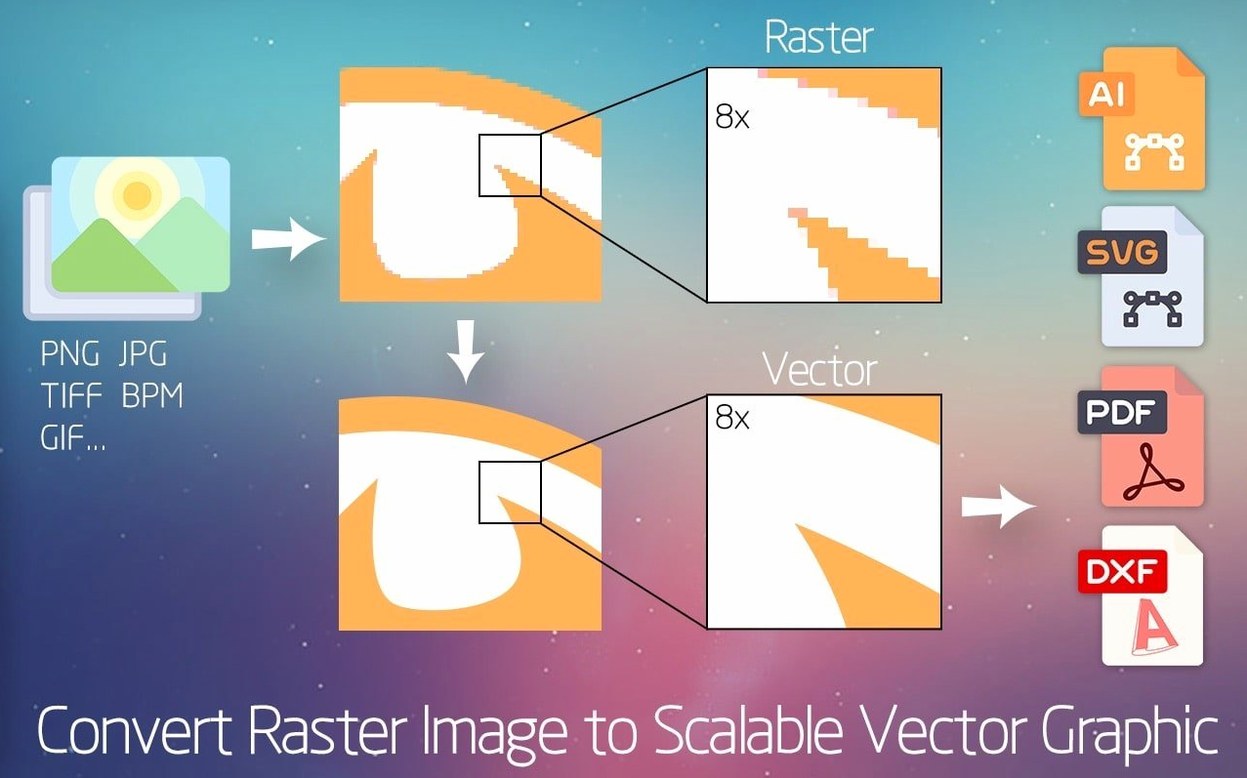

Vectorising — turning a pixel-based image into smooth lines and shapes
Input formats — over 70, from common JPEGs to older bitmap types
Output formats — AI, SVG, DXF and PDF, ready for your usual editor

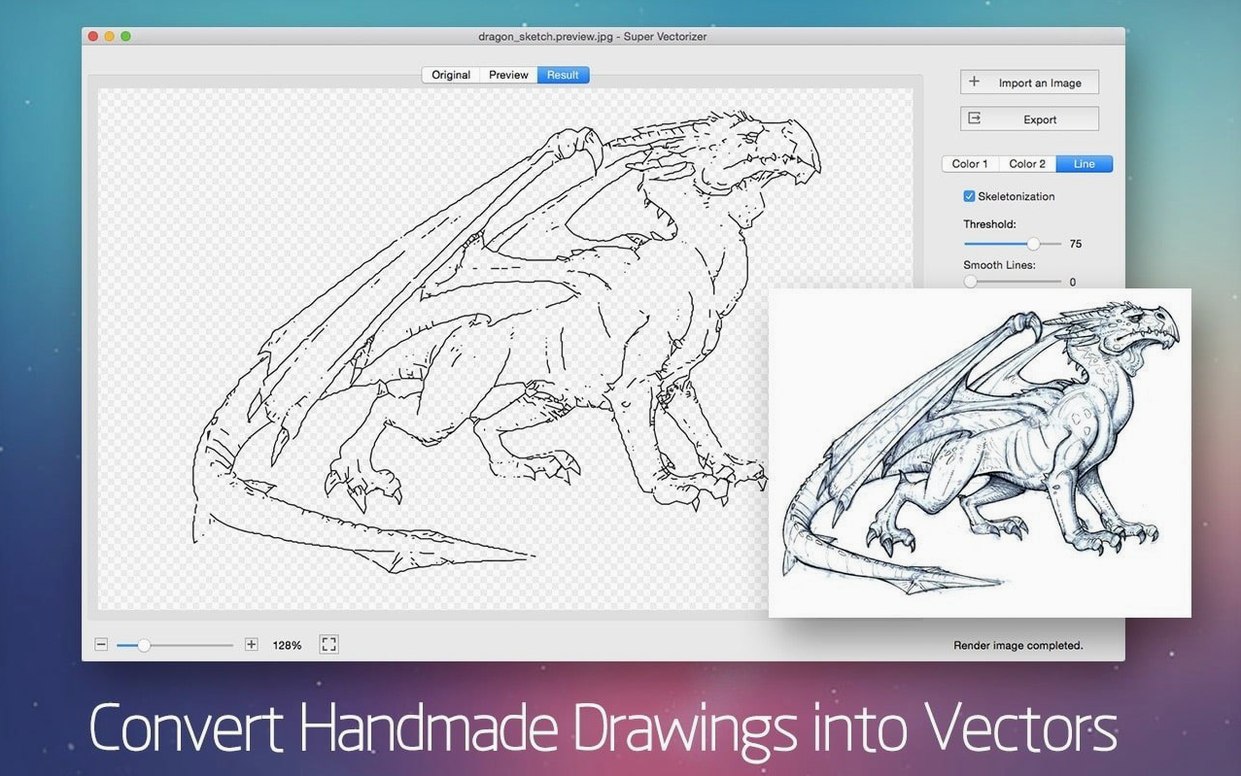

Skeletonisation — strips a shape down to its centre line, handy for maps and line art
Transparent backgrounds — the app can drop the background so you paste a logo straight onto a layout
Live preview — see the vector result before you export

It runs on macOS 10.10 and later and speaks nine interface languages. Nothing flashy — just a straightforward tracing engine that passes tidy vectors to the tools you already know.

Handy shortcuts you might not spot

Super Vectorizer Pro keeps its interface fairly minimal, but a few small niceties are easy to overlook.

• Drag a folder straight onto the window. You don't have to open images one at a time. Drop a folder and the app queues everything inside — useful when a client sends twenty product shots and you need vector versions of all of them.
• Click the colour chip to copy a hex code. In the colour palette after tracing, clicking any swatch copies its hex value to your clipboard. Paste it straight into a style guide or a CSS file.
• Right-click the preview to toggle between before and after. It's faster than using the toolbar button, and the close-up pixel‑perfect view helps you spot where the tracing engine has smoothed over a detail you wanted to keep.
• Hold Option while dragging a corner handle. The crop tool resizes from the centre when you hold Option. Saves repositioning the whole marquee.

A tracing session, step by step

Last week a friend dropped by the repair café with a faded T‑shirt logo he wanted on a bike-frame decal. The shirt photo was a JPEG taken on an old phone, creased and slightly skewed. Here's how it went.

1. Dragged the JPEG into Super Vectorizer Pro. The app opened straight into the preview, showing the original on the left.
2. Switched the mode to Colour and nudged the colour count down to 4 — the original had a yellow sun, blue text, a black outline and a white background he didn't want.
3. Ticked Drop Background. The white vanished from the preview. So far so good.
4. Zoomed in on the lettering. The edges looked a bit wobbly where the fabric had creased. Increased the Smooth slider a touch — not too far, or the serifs would soften into blobs.

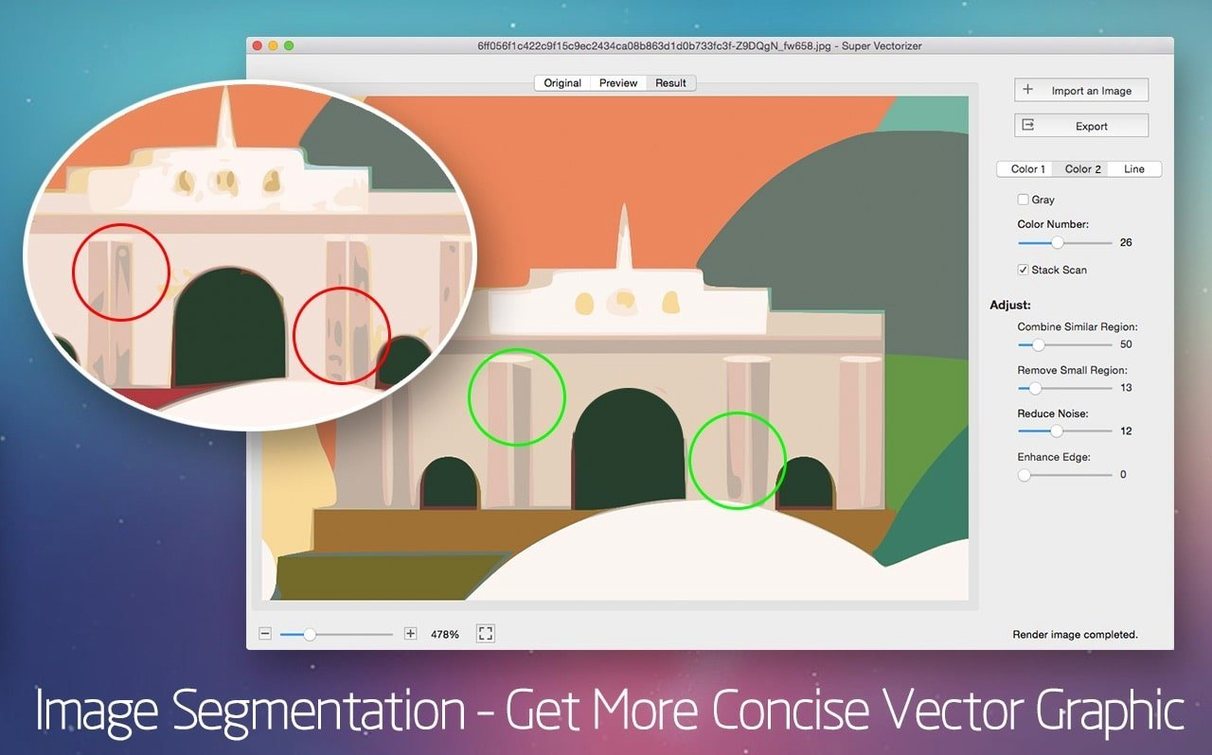

5. Switched to the Segment view to check the individual paths. One dot of stray colour sat in the corner from a thread in the photo. Clicked it in the palette and hit Delete to drop that colour entirely.
6. Exported as SVG. Opened it in Illustrator, scaled it to 200 mm wide and sent the file to the vinyl cutter. Forty minutes from creased photo to sticky decal.

That's the rhythm: drop an image in, pick a tracing mode, adjust two or three sliders while the live preview updates, then export. Most jobs don't need more.

When traced lines look jagged instead of smooth

"It won't open — unidentified developer"

macOS Gatekeeper blocks the app on first launch because it's signed outside the App Store. Don't panic. Right‑click the app icon and pick Open, then confirm in the dialogue that appears. After that one time, it launches normally. If you're on a managed machine with stricter policies, you may need an admin to whitelist it.

The tracing looks patchy or misses detail

Almost always a source‑image problem, not an app bug. Try these in order:

• Bump the input resolution. A 300‑pixel‑wide logo scans better than a 72‑pixel thumbnail. If you have a choice, feed it the largest version you have.
• Increase contrast first. The app traces edges by detecting differences. A washed‑out scan gives it less to work with. A quick levels tweak in Preview before dropping the image in makes a noticeable difference.
• Switch tracing modes. Colour works for logos and flat illustrations. Grey suits pencil drawings and shaded sketches. Black & White or Skeletonisation handles line art and maps best. If one mode produces a mess, the next one often nails it.

Too many vector nodes, file size ballooning

If your exported SVG runs to thousands of unnecessary points, back off the Detail slider. A lower percentage simplifies the paths. For a logo destined for a web header, try 60–70% detail — plenty sharp enough, and the file stays under 50 KB. You can always run a simplify‑path command later in Illustrator, but catching it at export saves a step.

Transparent background not working

The Drop Background checkbox only works when the image has a reasonably uniform background colour. If your photo has a gradient or heavy shadows, pick the Colour mode and manually delete the background colour swatch from the palette instead. For really tricky edges — like hair against a busy backdrop — trace with the background included, then remove it in your main editor where the selection tools are stronger.

You'll need

• macOS 10.10 (Yosemite) or newer
• Works on both Apple Silicon and 64-bit Intel Macs
